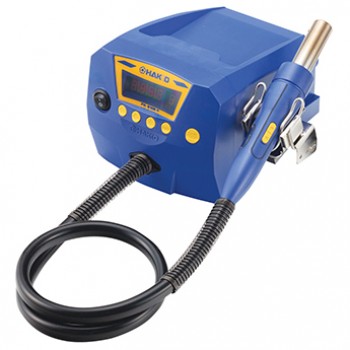

Hakko FR810B Hot Air Rework Station

The FR-810B includes an integrated vacuum pickup system that includes a visual indicator for reflow, allowing the operator to visually see when the component has completely reflowed and is safely lifted from the PCB. This special feature allows the operator to lift the handpiece without fear of damaging the pads or leads.

Easy to read digital display for both temperature and air level
Slender handpiece with integrated Start/Stop button
Store up to 5 presets for temperature, airflow and time
Airflow 5-115L/min (free flowing)
Preset Chain feature that allows the operator to link up to 5 presets to run in sequence, simulating a 5-heating zone reflow profile for SMD components
Automatic safety cool down
Temperature range 50 ~600°C
Auto Sleep and Auto power off

High power and large volume hot air for quick removal of components
A tool that can provide powerful hot airflow for repairing high heat capacity circuit boards that require high blow volume and high output, and sufficient hot airflow for appropriate blow volume and high output for high-density mounting substrates.

Efficiency improvement
The high volume airflow and high output of FR-810B make it possible to perform the same work in only one-third of the time required when using a conventional model. This reduces the thermal impact on boards and components.

Improvements of FR-810B

• On top of the features of FR-810, high power and large air volume, the new functions of vacuum pickup and pickup indicator have been given to FR-810B. The 2 new functions make it possible to remove a component without damaging PWB.
• New type of nozzles for improvement of temperature characteristics
  The new nozzle improves work efficiency with uniform heating by hot air convection inside the nozzle which is created due to vents on the nozzle top. (Only with BGA nozzle)
• Vacuum pickup function
  The vacuum pickup function is to pick up a component with a suction pad and vacuum. It will pick a component only after the hot air melts solder joints. This can avoid an error to peel off the land by removing a component with excessive force.
• Pickup indicator
  By pre-setting pickup function, a component can be picked up automatically when solder is melted. At the same time, the indication comes up and the moment of picking up will be visible. Even a component and solder joints can not be seen as covered by a nozzle, easy and safe picking up is possible.
• Simple nozzle removal and easy maintenance


Conventional/older series nozzles are usable via a conversion adapter (B5058)

Note: Includes N51-02 (4mm nozzle)
